Webhook Integrations

Monitoring as Code: Learn more about the Webhook Alert Channel Construct.

Webhooks provide the most flexible way to integrate Checkly with any system that accepts HTTP requests. Create sophisticated integrations with custom endpoints using templating, conditional logic, and security features.

Basic Webhook Setup

Create Webhook Channel

Navigate to Alert Settings and choose Webhook as your channel type

Configure Endpoint

Set your webhook URL, HTTP method, and authentication headers

Customize Payload

Design your request body using Checkly’s templating system

Test Integration

Send test alerts to verify your webhook integration works correctly

Template Variables

Use dynamic variables to create contextual alerts:

Variable	Description	Example Value
`CHECK_NAME`	Full check name	”Payment API Health Check”
`CHECK_ID`	UUID of the check	”abc123-def456-ghi789”
`CHECK_TYPE`	Type of check	”API”, “BROWSER”, “HEARTBEAT”
`ALERT_TITLE`	Human-readable alert title	”Check ‘Payment API’ has failed”
`ALERT_TYPE`	Alert event type	”ALERT_FAILURE”, “ALERT_RECOVERY”
`CHECK_RESULT_ID`	UUID of the result	”result-123-456”
`CHECK_ERROR_MESSAGE`	Error details	”Connection timeout after 5000ms”
`RESPONSE_TIME`	Response time in milliseconds	1234
`RUN_LOCATION`	Location where check ran	”N. Virginia”
`RESULT_LINK`	Direct link to results	”https://app.checklyhq.com/…”
`STARTED_AT`	ISO timestamp	”2024-01-15T14:30:22.000Z”
`TAGS`	Array of check tags	[“critical”, “payment”, “api”]
`GROUP_NAME`	Group name if applicable	”Payment Services”

Handlebars Helpers

Helper	Description
`{{REGION}}`	Resolves to the AWS region name (e.g., `us-east-1`)
`{{$UUID}}`	Generates a random UUID/v4 (e.g., `9b1deb4d-3b7d-4bad-9bdd-2b0d7b3dcb6d`)
`{{$RANDOM_NUMBER}}`	Generates a random decimal number between 0 and 1000 (e.g., `345`)
`{{moment}}`	Generates dates/times using moment.js with formatting:

{{moment "YYYY-MM-DD"}} → 2020-08-26
{{moment "2 days ago" "YYYY-MM-DD"}} → 2020-08-24
{{moment "last week" "X"}} → 1597924480

A practical example of using the {{moment}} helper would be setting the pagination options on a typical API endpoint:

api-request

 GET https://api.acme.com/events?from={{moment "last week" "X"}}&to={{moment "X"}}

You can find the full list of helpers in the README.md file of the underlying library we are using. For a full overview of date formatting option, check the moment.js docs.

Create dynamic webhook content with conditional formatting:

webhook-payload.json

{
  "priority": "{{#eq ALERT_TYPE 'ALERT_FAILURE'}}P1{{else}}{{#eq ALERT_TYPE 'ALERT_DEGRADED'}}P2{{else}}P3{{/eq}}{{/eq}}",
  "environment": "{{#contains CHECK_NAME 'prod'}}production{{else}}{{#contains CHECK_NAME 'staging'}}staging{{else}}development{{/contains}}{{/contains}}",
  "escalation_needed": {{#and (eq ALERT_TYPE 'ALERT_FAILURE') (contains TAGS 'critical')}}true{{else}}false{{/and}},
  "formatted_tags": [{{#each TAGS}}"{{uppercase this}}"{{#unless @last}},{{/unless}}{{/each}}],
  "response_time_category": "{{#gt RESPONSE_TIME 5000}}slow{{else}}{{#gt RESPONSE_TIME 2000}}medium{{else}}fast{{/gt}}{{/gt}}",
  "alert_color": "{{#eq ALERT_TYPE 'ALERT_FAILURE'}}#ff0000{{else}}{{#eq ALERT_TYPE 'ALERT_DEGRADED'}}#ffa500{{else}}#00ff00{{/eq}}{{/eq}}"
}

Webhook Secrets

You can validate each webhook we deliver to your endpoint(s). Using the optional webhook secret, you can:

Check if the webhook was sent by Checkly.
Check if the payload was not altered in any way during transmission.

When you create a webhook secret, we proceed to use that secret token to cryptographically sign the webhook payload using the SHA256 hash algorithm. We add the resulting hash to the HTTP header x-checkly-signature on each webhook. On the receiving end, you can then use the value of the x-checkly-signature header to assert the validity and authenticity of the webhook and its payload. Have a look at the code examples below on how to use the header and your favourite web framework.

Node.js
Ruby
Python

webhook-server.js

// We store the webhook secret in an environment variable called CHECKLY_WEBHOOK_SECRET
const app = require('express')();
const bodyParser = require('body-parser');
const crypto = require('crypto');

function isVerifiedPayload (payload, signature) {
  const secret = process.env.CHECKLY_WEBHOOK_SECRET
  const hmac = crypto.createHmac('sha256', secret)
  const digest = hmac.update(payload).digest('hex')
  return crypto.timingSafeEqual(Buffer.from(digest), Buffer.from(signature))
}

app.post('/webhook', bodyParser.json({ type: 'application/json' }), (request, response) => {

  const signature = request.headers['x-checkly-signature'];
  const payload = JSON.stringify(request.body)

  if (isVerifiedPayload(payload, signature)) {
    console.log('Signature is valid')
    response.status(200).send();
  } else {
    console.error('Signature does not match')
    response.status(400).send();
  }
});

app.listen(4242, () => console.log('Running on port 4242'))

Webhook Retries

Checkly will retry your webhook up to 5 times if we get an HTTP response higher than 399, e.g. a 404 or 503. Each retry is backed off 20 seconds for a total retry period of 5 * 20 = 100 seconds. This means that for checks on a 1 minute schedule, there is a potential overlap between a failure alert and recovery alert. For this reason every webhook we send has a timestamp in the x-checkly-timestamp header. You can use this timestamp on the receiving end to ignore any webhooks that come in “late”.

Webhook Examples

The following examples give an idea how to integrate Checkly with 3rd party alerting and issue tracking systems.

OpsGenie

You can create an OpsGenie alert by POST-ing the following body

opsgenie-webhook.json

{
  "message": "{{ALERT_TITLE}}",
  "description": "{{ALERT_TYPE}} <br>{{STARTED_AT}} ({{RESPONSE_TIME}}ms) <br>{{RESULT_LINK}}",
  "tags": [{{#each TAGS}} "{{this}}" {{#unless @last}},{{/unless}} {{/each}}]
}

to the OpsGenie alerts API endpoint

endpoint-url

https://{{OPSGENIE_API_KEY}}@api.opsgenie.com/v2/alerts

Or you can add the OpsGenie API key in the headers, e.g.

Authorization: GenieKey {{OPSGENIE_API_KEY}}

This is an example of a full alert body:

opsgenie-full-webhook.json

{
  "message": "{{ALERT_TITLE}}",
  "description": "{{ALERT_TYPE}}: {{CHECK_NAME}} <br>{{STARTED_AT}} ({{RESPONSE_TIME}}ms) <br>{{RESULT_LINK}}",
  "responders": [
        {
            "id":"4513b7ea-3b91-438f-b7e4-e3e54af9147c",
            "type":"team"
        }
  ],
  "tags": ["Critical", "Production"],
  "priority":"P1",
  "note": "Location: {{RUN_LOCATION}}"
}

In case you would like different teams to be responsible for different Check Groups, you could add a CHECK_GROUP_TEAM variable with a different value for each Group, then modify the above snippet with the following:

team-responders.json

"responders": [
      {
          "id":"{{CHECK_GROUP_TEAM}}",
          "type":"team"
      }
]

PagerDuty

Given an existing service on your PagerDuty account, create an incident for it by posting the following body

pagerduty-webhook.json

{
  "incident": {
    "type": "incident",
    "title": "{{ALERT_TITLE}}",
    "service": {
      "id": "<YOUR_SERVICE_ID_FROM_PAGERDUTY>",
      "type": "service_reference"
    },
    "body": {
      "type": "incident_body",
      "details": "Check {{CHECK_NAME}} with ID {{CHECK_ID}} has failed from location {{RUN_LOCATION}}. See check result for details: {{RESULT_LINK}}"
    }
  }
}

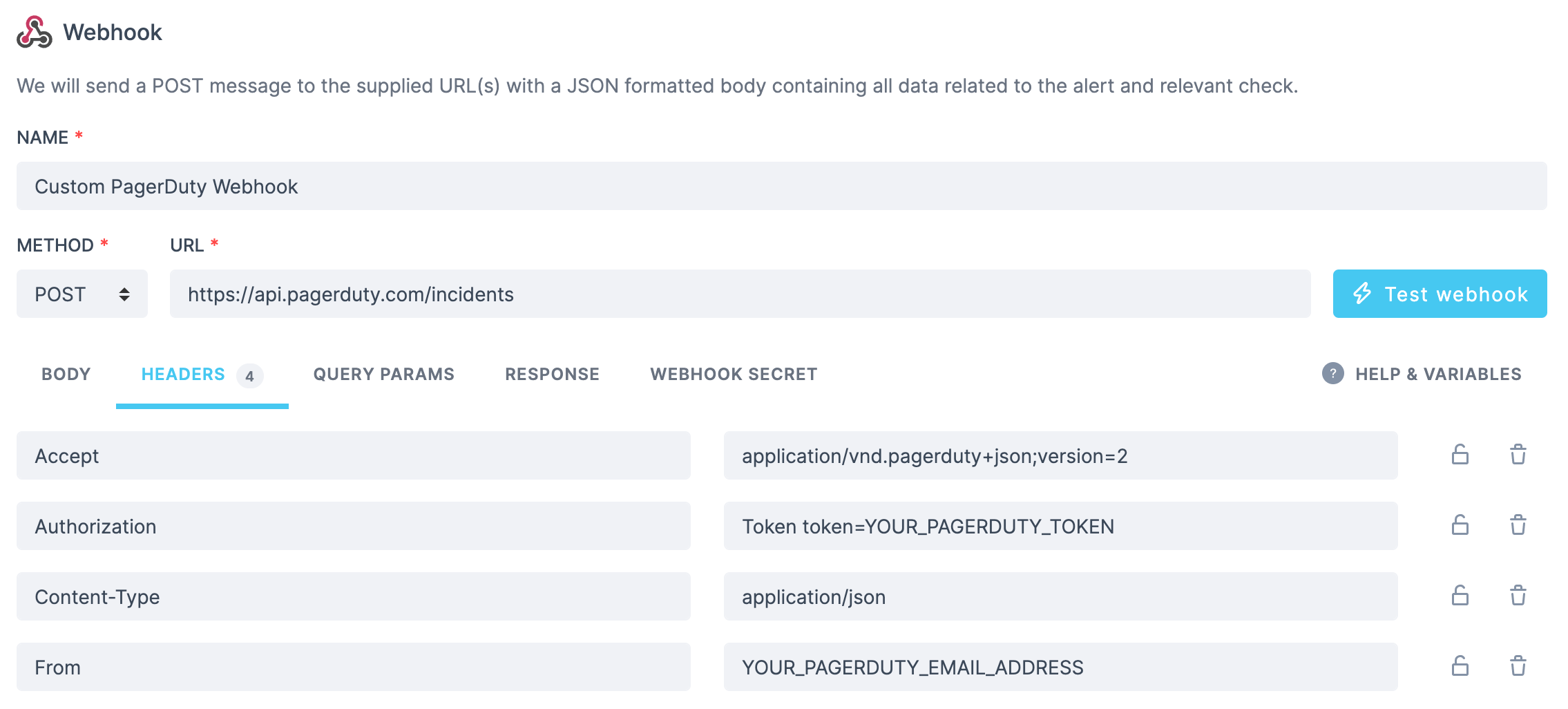

to https://api.pagerduty.com/incidents. You will need to set the following headers:

Pushover

Send a message using Pushover by posting this body:

pushover-webhook.json

{
  "token":"YOUR_SECRET_TOKEN_FROM_PUSHOVER",
  "user":"YOUR_USER_FROM_PUSHOVER",
  "title":"{{ALERT_TITLE}}",
  "html":1,
  "priority":2,
  "retry":30,
  "expire":10800,
  "message":"{{ALERT_TYPE}} <br>{{STARTED_AT}} ({{RESPONSE_TIME}}ms) <br>{{RESULT_LINK}}"
}

Trello

You can create a Trello card using just the URL and no payload:

https://api.trello.com/1/cards?idList=5b28c04aed47522097be8bc4&key={{TRELLO_KEY}}&token={{TRELLO_TOKEN}}&name={{CHECK_NAME}}

SSL alert

You can send your SSL alerts using webhooks. Using the following body:

ssl-alert-webhook.json

{
  "message": "{{ALERT_TITLE}}",
  "link":"{{RESULT_LINK}}"
}

Will yield the following output, where we customize the ALERT_TITLE to include the domain and the days remaining till your certificate expires.

ssl-alert-response.json

{
  "message": "The SSL certificate for api.checklyhq.com will expire in 14 days",
  "link": "http://app-test.checklyhq.com/checks/08437f9c-df8c-45ed-975a-a3f9e24d626d"
}

Twilio

You can configure a webhook to POST to a JavaScript snippet running in a Twilio Function. This code receives the Checkly webhook JSON, then triggers a Twilio “Flow execution”:

twilio-function.js

//"From" is the sender phone number
//"To" is the receiver phone number
exports.handler = async function (context, event, callback) {
  const { From, To, Event, Link } = event;
  const client = context.getTwilioClient();
  try {
    const execution = await client.studio.flows(FLOW_SID)
      .executions
      .create({ to: To, from: From, parameters: { Event, Link } })
    console.log(`Created execution ${execution.sid}`);
    return callback(null, "OK");
  } catch (error) {
    return callback(error);
  }
};

Jira

A webhook can be used to create a new issue on Jira via the Jira API, for example in the case of a previously passing check that switches to failing state. We will be creating a POST request to {{JIRA_INSTANCE_URL}}/rest/api/3/issue, where the content of your JIRA_INSTANCE_URL environment variable would look something like https://your-jira-instance-name.atlassian.net. The required headers will be:

jira-headers

Authorization: Basic <base64 encoded user_email:api_token_string>
Accept: application/json
Content-Type: application/json

For more details on authenticating with the Jira API, refer to Atlassian’s guide on basic authentication. An example body could look as follows:

jira-webhook.json

{
  "fields": {
    "description": { // your Jira issue description, using Atlassian Document Format (ADF)
      "version": 1,
      "type": "doc",
      "content": [
        {
          "type": "paragraph",
          "content": [
            {
              "type": "text",
              "text": "View check result",
              "marks": [
                {
                  "type": "link",
                  "attrs": {
                    "href": "{{RESULT_LINK}}"
                  }
                }
              ]
            }
          ]
        }
      ]
    },
    "issuetype": {
      "id": "10001" // your Jira issue type id
    },
    "labels": [
      "needs_investigation"
    ],
    "priority": { // dynamically set the issue priority, based on the check's tags
      "id": {{#contains TAGS "P1"}} "1"
        {{else}} {{#contains TAGS "P2"}} "2"
        {{else}} {{#contains TAGS "P3"}} "3"
        {{else}} {{#contains TAGS "P4"}} "4"
        {{else}} {{#contains TAGS "P5"}} "5"
        {{else}} "3"
      {{/contains}} {{/contains}} {{/contains}} {{/contains}} {{/contains}}
    },
    "project": {
      "key": "ABC" // your Jira project key
    },
    "summary": "{{ALERT_TITLE}}"
  }
}

For full details on creating issues via the Jira API, see Atlassian’s documentation for this endpoint. You can also use version 2 of the Jira API (i.e. {{JIRA_INSTANCE_URL}}/rest/api/2/issue). The only difference is that version 2 does not support Atlassian Document Format (ADF).

Webhook Best Practices

Authentication: Always use proper authentication (API keys, signatures, OAuth)
Idempotency: Design endpoints to handle duplicate webhook deliveries gracefully
Error Handling: Return appropriate HTTP status codes (200-299 for success, 4xx/5xx for errors)
Timeout: Respond to webhooks quickly (within 30 seconds) to avoid retries
Logging: Log webhook events for debugging and monitoring
Security: Validate webhook signatures and implement replay attack protection
